Bucking Units are used to make up or break out tubulars connections in a horizontal position. The CLEBU23000 Type III bucking units is used for the make-up or beak-out of tool assemblies which have varying diameters and lengths. The tong and backup spacing can be adjusted from a few inches to many feet.

Bucking Units use the patented die system, which features a self-aligning spline system that wraps around the pipe, providing coverage up to 330 degrees. The dies distribute the radial load over the largest possible area to minimize pipe stress and deformation.

• A powered, rotating tong assembly with hydraulically operated jaws that grip the tubular’s coupling.
• A non-rotating backup assembly with hydraulically operated jaws that grip the body of the tubular.
• A frame system that supports the first two items and contains the drive mechanisms and bucking unit control panel

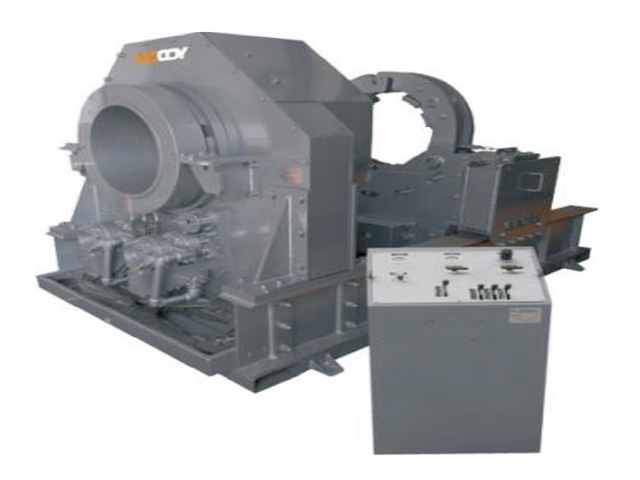

CLEBU23000 - 23" TYPE III BUCKING UNIT SPECIFICATION

DESCRIPTION		SPECIFICATION
Size range	:	2-3/8" to 23"
Hydraulic power supply	:	3.000 psi and 60 rpm*
Max low gear torque & speed	:	50.000 ft.-lb. and 6 rpm*
Max high gear torque & speed	:	25.000 ft.-lb. and 12 rpm*
Backup size range	:	2-3/8" to 23"
Backup max range	:	50.000 ft.-lb. at 3.000 psi
Backup handle length	:	41"
Backup travel	:	72"
Overall length	:	126-1/2"
Overall width	:	80"
Overall height	:	52-3/4"
Overall weight	:	18.000 lb.

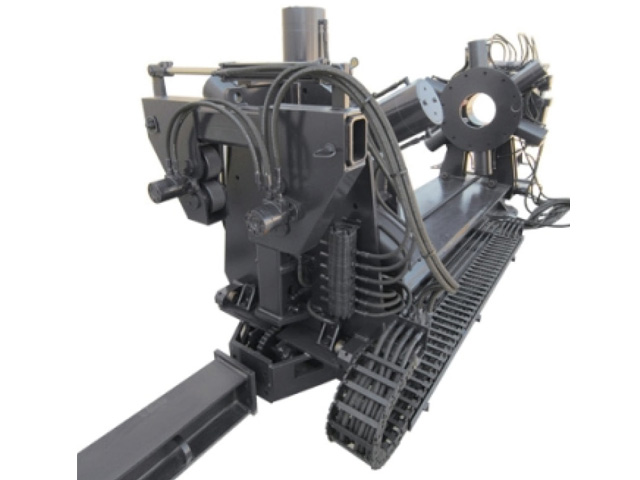

THE CLINCHE RP 3014 BUCKING UNIT SPECIFICATION

DESCRIPTION		SPECIFICATION
Size range	:	3-1/2" to 13-1/2"
Torque capacity make	:	160,000 ft. lb.
Torque capacity break	:	190,000 ft. lb.
Weight (approx)	:	8,350 lb.
